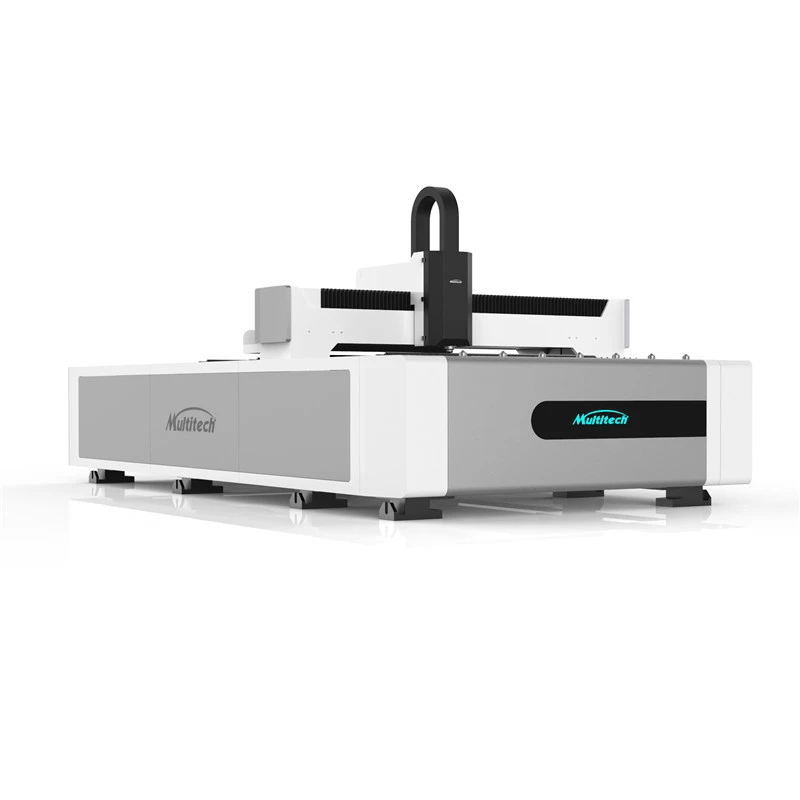

Industrial Fiber Laser Cutting Machine
Type of laser: Fiber
Laser source: RAYCUS/MAX
Laser power: 500w/1000w/2000w/3000w/4000w/6000w
Send Inquiry
Product Details ofIndustrial Fiber Laser Cutting Machine
Industrial Fiber Laser Cutting Machine is a laser cutting machine that uses a fiber laser generator as a light source. Fiber laser is a new type of fiber laser that outputs high-energy-density laser beams, which are concentrated on the surface of the workpiece to instantly melt and vaporize the area irradiated by the ultra-fine focus spot on the workpiece. Automatic cutting is realized by moving the light spot irradiation position through the numerical control mechanical system.
Configuration of Industrial Fiber Laser Cutting Machine
Working area:1300*2500mm/1500*3000mm/2000*4000mm/2000*6000mm
Type of laser: Fiber
Laser source: RAYCUS/MAX
Laser power: 500w/1000w/2000w/3000w/4000w/6000w
Laser cutting head: WSX or RAYTOOLS from Switzerland
Cooling system: water chiller that suitable for laser source
HIWIN linear square rail from Taiwan
Control systerm: Cypcut control system
Japan Servo motor and drivers YASKAWA
Voltage: 380v/ 50hz
Features of Industrial Fiber Laser Cutting Machine
1) Excellent quality: smaller focused spot, finer granularity, higher work efficiency and better processing quality;
2) Extreme cutting speed;
3) Very high electro-optical conversion efficiency, environmental protection and energy saving;
4) Very low use and maintenance costs;
5) Convenient product operation and maintenance: optical fiber transmission, no need to adjust the optical path;
6) Strong directional light guiding effect, small size.
Machine Configuration
Product name | Industrial Fiber Laser Cutting Machine |
Condition | New |
Laser Type | Fiber Laser |
Cutting Area | 3000mm*1500mm, optional: 1300*2500mm, 1500*4000mm, 1500*6000mm (the cutting area can be customized according to your needs). |
Cutting Speed | 50m/min |
Graphic Format Supported | AI, DXF, Dst, DXP |
Cutting Thickness | 0-8/mm |
CNC or Not | yes |
Cooling Mode | WATER COOLING |
Certification | CE, ISO |
Weight (KG) | 3000KG |
Warranty | 2years |
Applicable Industries | Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, other, Advertising Company |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Marketing Type | New Product 2020 |
Core Components | other, Bearing, Engine, PLC |
Thickness | 1mm-20mm(according to the machine laser power ). |
Power | 500W,1000W,2000W,3000W,4000W, 6000W |
Machine Bed Structure
Taiwan HIWIN Linear Rail and Block
Japan YASKAWA Servo System
The Y axis two servo motor power are 850W; The X axis servo power is 850W power; The Z axis servo motor power is 0.4KW power.
WSX domestic brand Cutting Head
Raycus laser source
CYPCUT Control System
Chiller Machine
Japan Shimpo reducer
Application
Package and delivery the Industrial Fiber Laser Cutting Machine
Our Factory
Certification
FAQ
1. When can we arrange shippment?
A: We usually arrange shippment within 15 days after getting deposit but customized machines should be more than 25 days.
2. What you can do if my machines have problems?
A: 1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3. Do you provide equipment operation training ?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4. Why should you buy from us not from other suppliers?
A: Our company has a group of top laser technology talents, established a covering China, radiation of the global sales system.The company has a standardized intelligent equipment base, committed to fiber cutting machine research and development.
After-sales service:
We have a professional and experienced after-sales team. We support door-to-door after-sales service. In order to effectively solve customer problems and help customers use the machine better, we will conduct skill assessments on our after-sales team every year.
To improve the problem-solving level of the after-sales team. Improve their skills more comprehensively, to serve customers wholeheartedly.
After-sales service Star engineers (partial show)
Real customers' feedback
Our customers
Why choose us?
- Our machines are designed to be low-maintenance, reducing your workload and increasing productivity.
- We guarantee that the products are genuine, safe and reliable, and at the same time guarantee perfect after-sales service.
- Our machines are designed to deliver precise cuts, ensuring that your products meet the highest standards.
- We are striving to obtain good economic benefits by expanding our industrial strength, scientific and technological strength and talent strength.
- We offer customization options to ensure that our machines meet your exact requirements.
- We actively establish the consciousness of fine products and brand awareness, and constantly improve the level of process equipment and technology development.
- We have a team of experts who can provide technical support and assistance whenever needed.
- When we research and develop each product, we will design different experiments to ensure that the new product can reach the customer's mind in all aspects.
- We offer fast and reliable delivery of our laser cutting machines to any location worldwide.
- While striving to create a better society, our strong sense of responsibility allows us to lead our Industrial Fiber Laser Cutting Machine towards the trend of environmental protection and energy saving.
